Flutter PWA + Firebase (Cloud Messaging)

PWA (Progressive Web Apps) 은 네이티브 앱과 같은 사용경험을 제공해주는 웹앱이다.

PWA 에서 제공하는 기능 중 가장 궁금했던 기능이 바로 네이티브 앱처럼 Push 알림을 받는것. Google FCM 을 통해서 웹 앱에 알림을 보내는 것을 간단하게 해보자.

웹앱에 대해 초보인 경우 Flutter (open-source UI software development kit) 를 사용하면 좋다.



---



1) Flutter 설치

Mac OS 가이드

https://docs.flutter.dev/get-started/install/macos/web

• OS: macOS11 (Big Sur) 이상
• default shell: zsh
• 개발 Tool: Google Chrome, Git
• IDE 는 Visual Studio Code , Android Studio , IntelliJ IDEA  중에 편한것으로,

VS Code 는 Flutter 설치까지 쉽게 되기 때문에 VS Code 에서 시작

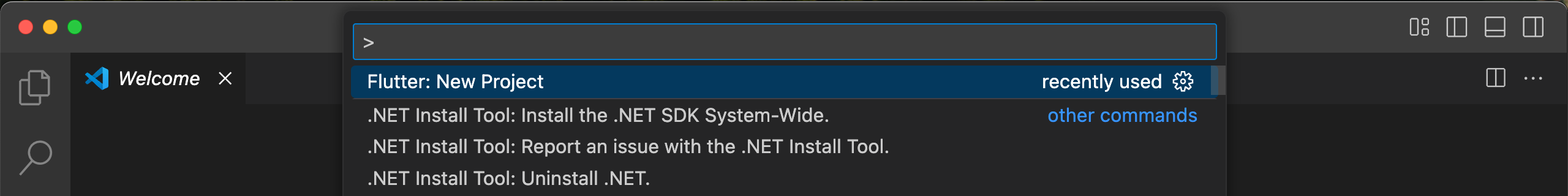

• Command Palette (Command + Shift + P)> Flutter: New Project 로 프로젝트 생성 (pwa_test)
• Download SDK 팝업이 뜨면 click 해서 설치.
• Select Folder for Flutter SDK Flutter SDK 설치 위치는 원하는곳으로 지정.
• Clone Fltter
• VS Code 재시작

---

2) Flutter 앱에 Firebase 연동하기

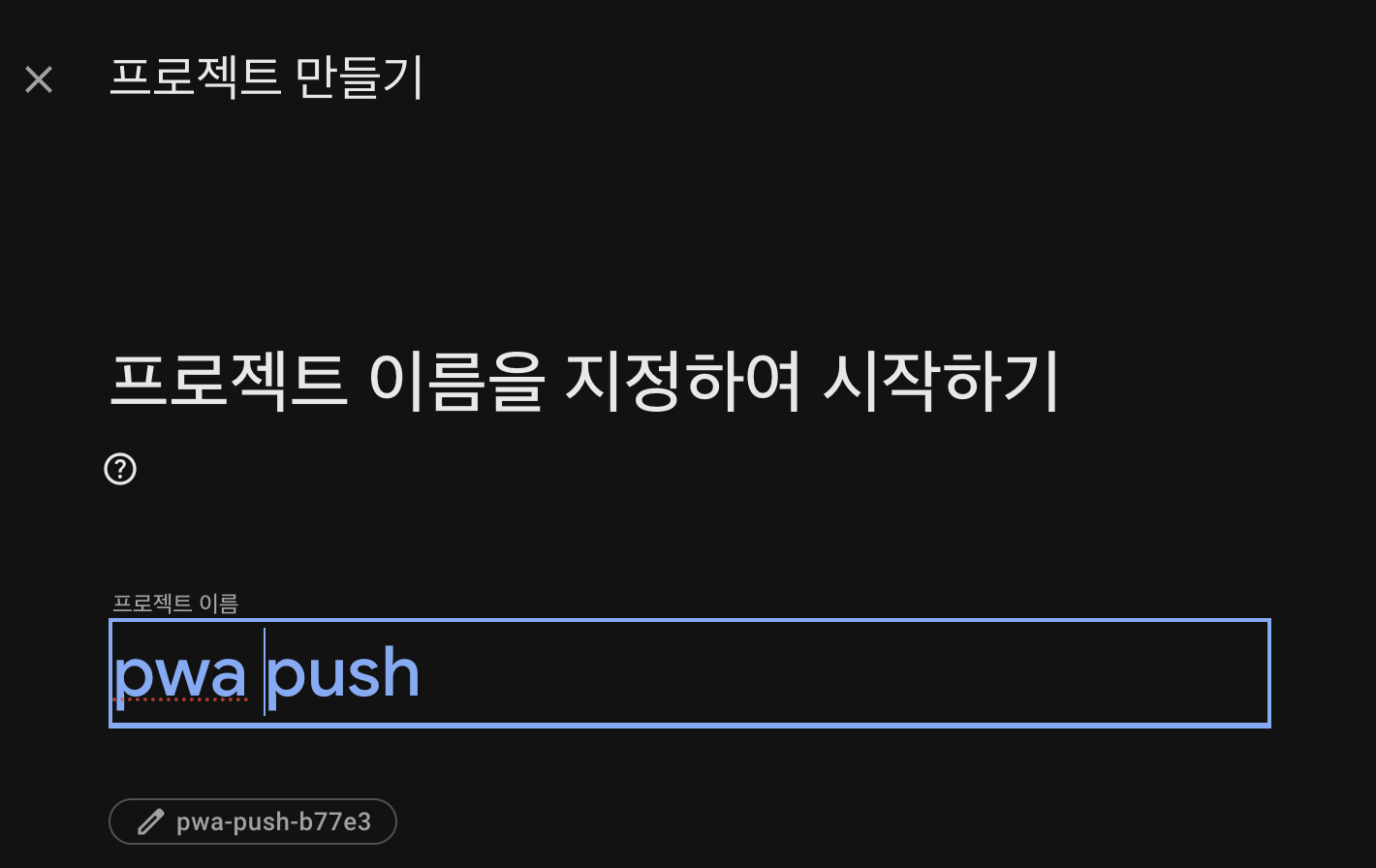

2-1) Firebase 에서 프로젝트 생성

모든 설정은 default 값 유지해서 생성

2-2) Flutter 앱에 Firebase 추가

https://firebase.google.com/docs/flutter/setup?hl=ko&_gl=1*wm0m2d*_up*MQ..*_ga*MTA5OTg1NjQ4MS4xNzQ0MzAxNDA1*_ga_CW55HF8NVT*MTc0NDMwMTQwNC4xLjAuMTc0NDMwMTQwNC4wLjAuMA..&platform=web

Flutter 앱에 Firebase 추가

$ firebase login # 프로젝트 생성한 구글계정 로그인
$ dart pub global activate flutterfire_cli # FlutterFire CLI 설치
Package flutterfire_cli is currently active at version 1.1.0.
Downloading packages... .
The package flutterfire_cli is already activated at newest available version.
To recompile executables, first run `dart pub global deactivate flutterfire_cli`.
Installed executable flutterfire.
Activated flutterfire_cli 1.1.0.

flutterfire configure 를 실행하면

✔️ 연결할 firebase  프로젝트 선택

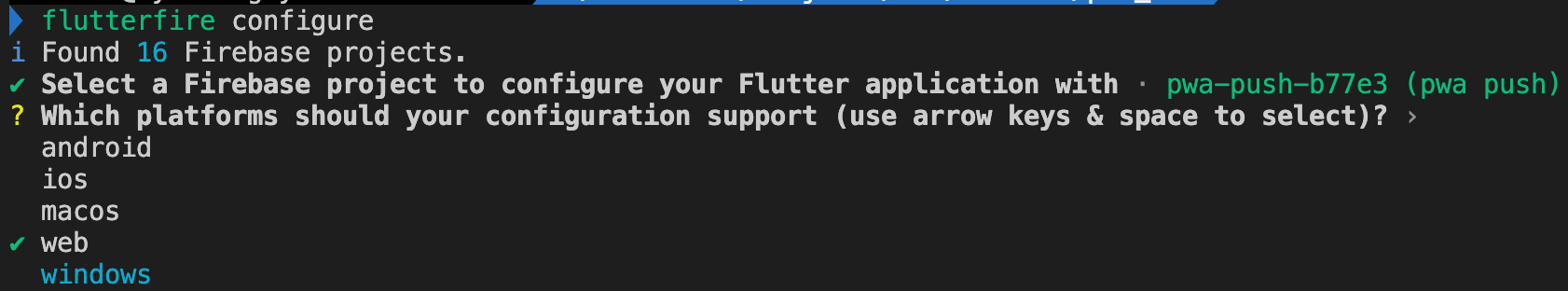

✔️ Flutter 앱에서 지원되는 플랫폼 선택 (e.g. web)



$ flutterfire configure
i Found 16 Firebase projects.
✔ Select a Firebase project to configure your Flutter application with · pwa-push-b77e3 (pwa push)
✔ Which platforms should your configuration support (use arrow keys & space to select)? · web
i Firebase web app pwa_test (web) is not registered on Firebase project pwa-push-b77e3.
i Registered a new Firebase web app on Firebase project pwa-push-b77e3.

Firebase configuration file lib/firebase_options.dart generated successfully with the following Firebase apps:

Platform  Firebase App Id
web       xxxxx

Learn more about using this file and next steps from the documentation:
 > https://firebase.google.com/docs/flutter/setup

✔️ Firebase 구성 파일 생성

• lib/firebase_options.dart
• firebase.json

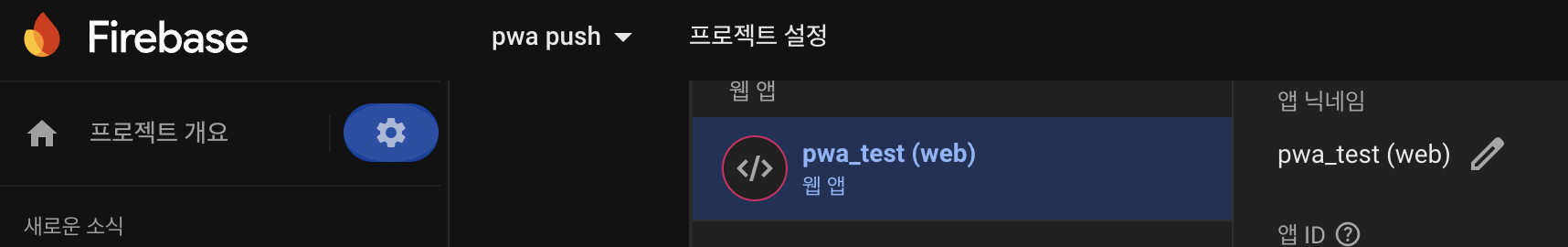

✅ Firebase Console 에 확인해보면 앱이 추가된것 확인



2-3) 연동을 위한 Firebase Core 플러그인 설치

$ flutter pub add firebase_core
Resolving dependencies...
Downloading packages...
  async 2.12.0 (2.13.0 available)
  fake_async 1.3.2 (1.3.3 available)
+ firebase_core 3.13.0
+ firebase_core_platform_interface 5.4.0
+ firebase_core_web 2.22.0
+ flutter_web_plugins 0.0.0 from sdk flutter
  leak_tracker 10.0.8 (10.0.9 available)
  material_color_utilities 0.11.1 (0.12.0 available)
+ plugin_platform_interface 2.1.8
  vm_service 14.3.1 (15.0.0 available)
+ web 1.1.1
Changed 6 dependencies!
5 packages have newer versions incompatible with dependency constraints.
Try `flutter pub outdated` for more information.

2-4) main.dart 코드에 firebase 초기화 코드 추가

import 'package:flutter/material.dart';
import 'package:firebase_core/firebase_core.dart';
import 'firebase_options.dart';

void main() async{
  WidgetsFlutterBinding.ensureInitialized();
  await Firebase.initializeApp(
    options: DefaultFirebaseOptions.currentPlatform,
  );
  runApp(const MyApp());
}

2-5) Flutter 웹앱 실행

$ flutter run
Connected devices:
...

No wireless devices were found.

[1]: macOS (macos)
[2]: Mac Designed for iPad (mac-designed-for-ipad)
[3]: Chrome (chrome)
Please choose one (or "q" to quit): 3
Launching lib/main.dart on Chrome in debug mode...

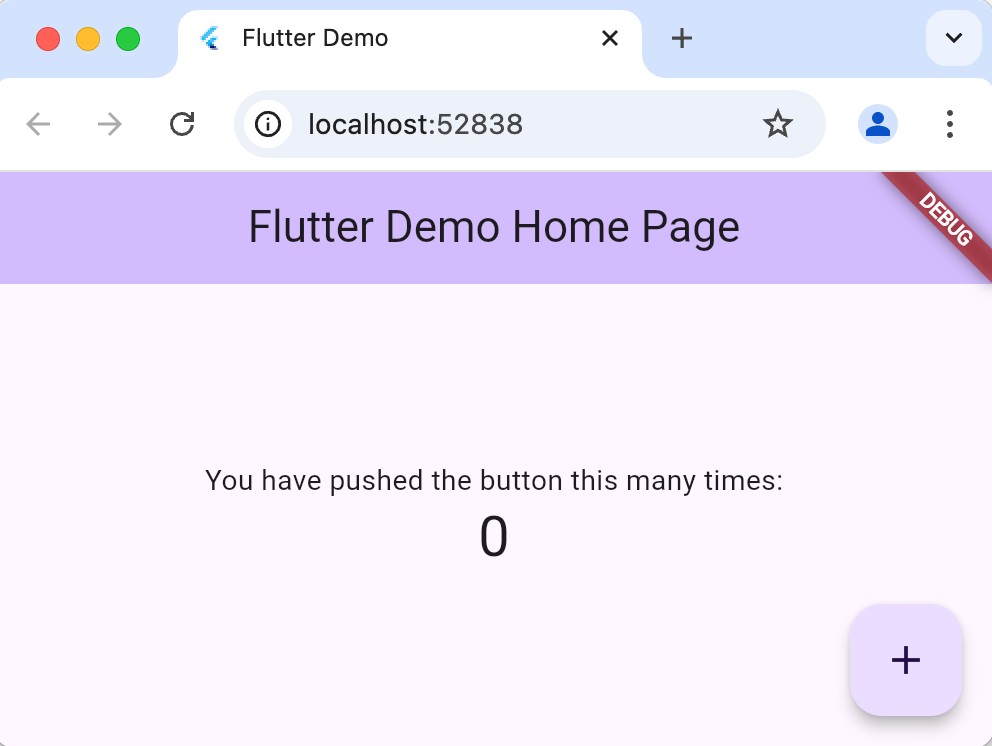

✅ 에러 없이 웹앱 실행















3) Flutter 앱에 Firebase Cloud Messaging 연동하기

3-1) Firebase Messaging Plugin 설치

$ flutter pub add firebase_messaging
Resolving dependencies...
Downloading packages...
+ _flutterfire_internals 1.3.54
  async 2.12.0 (2.13.0 available)
  fake_async 1.3.2 (1.3.3 available)
+ firebase_messaging 15.2.5
+ firebase_messaging_platform_interface 4.6.5
+ firebase_messaging_web 3.10.5
  leak_tracker 10.0.8 (10.0.9 available)
  material_color_utilities 0.11.1 (0.12.0 available)
  vm_service 14.3.1 (15.0.0 available)
Changed 4 dependencies!
5 packages have newer versions incompatible with dependency constraints.
Try `flutter pub outdated` for more information.

$ flutterfire configure
✔ You have an existing `firebase.json` file and possibly already configured your project for Firebase.
Would you prefer to reuse the values in your existing `firebase.json` file to configure your project? · yes

3-2) Firebase Messaging Code 를 main.dart 에 추가

import 'package:flutter/material.dart';
import 'package:firebase_core/firebase_core.dart';
import 'firebase_options.dart';
import 'package:firebase_messaging/firebase_messaging.dart';

void main() async{
  WidgetsFlutterBinding.ensureInitialized();
  await Firebase.initializeApp(
    options: DefaultFirebaseOptions.currentPlatform,
  );
  if (await FirebaseMessaging.instance.isSupported()) {
    await FirebaseMessaging.instance.setAutoInitEnabled(true);
  }
  runApp(const MyApp());
}

...

class _MyHomePageState extends State<MyHomePage> {
  int _counter = 0;
  final FirebaseMessaging _messaging = FirebaseMessaging.instance; ✅
  String? _fcmToken;

  @override
  void initState() {
    super.initState();
    setupFCM(); ✅
  }

  void setupFCM() async {
    _fcmToken = await _messaging.getToken();
    print("🔔 FCM Token: $_fcmToken");
    FirebaseMessaging.onMessage.listen((RemoteMessage message) {
      print('📲 Message in foreground: ${message.notification?.title}');
      showDialog(
        context: context,
        builder: (_) => AlertDialog(
          title: Text(message.notification?.title ?? ''),
          content: Text(message.notification?.body ?? ''),
        ),
      );
    });
  }

 ...
 }

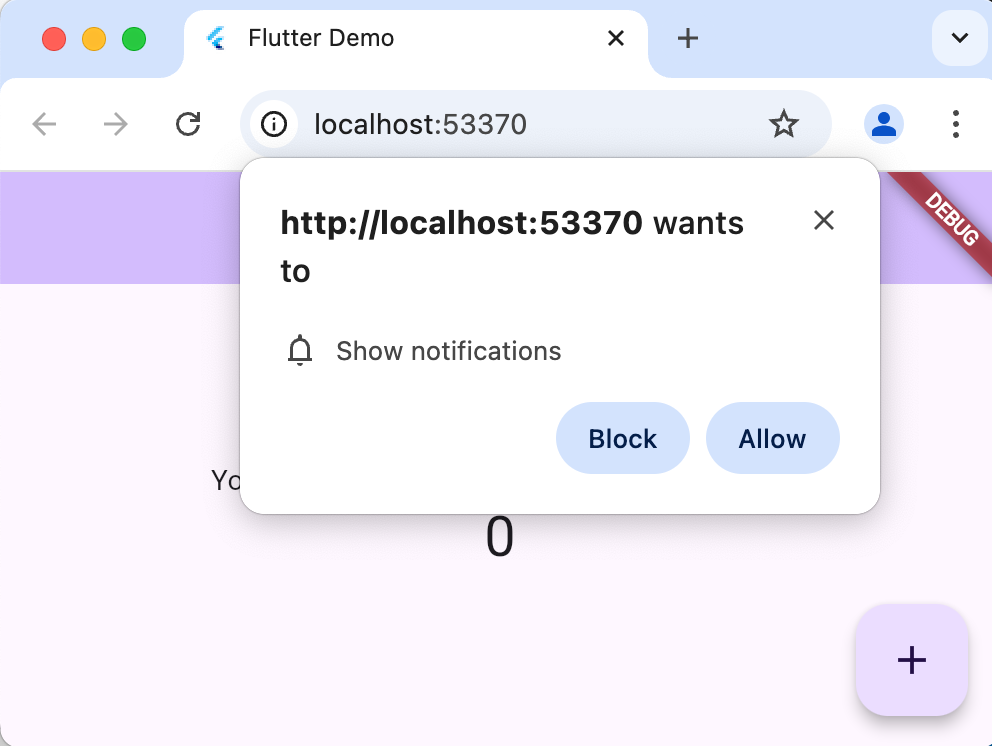

✅ 앱 실행 시 알림 허용 팝업 생성

허용시, 해당 앱의 FCM Token 발행













4) Push 테스트

https://firebase.google.com/docs/cloud-messaging/migrate-v1?hl=ko&authuser=0&_gl=1*ren5w*_up*MQ..*_ga*MTQzMDc1MDAxNC4xNzQ0MzU4MDc3*_ga_CW55HF8NVT*MTc0NDM3MDU4Mi4yLjEuMTc0NDM3MTMyNi40OS4wLjA.

기존 FCM API에서 HTTP v1로 이전  |  Firebase Cloud Messaging

4-1) 서비스 계정 생성

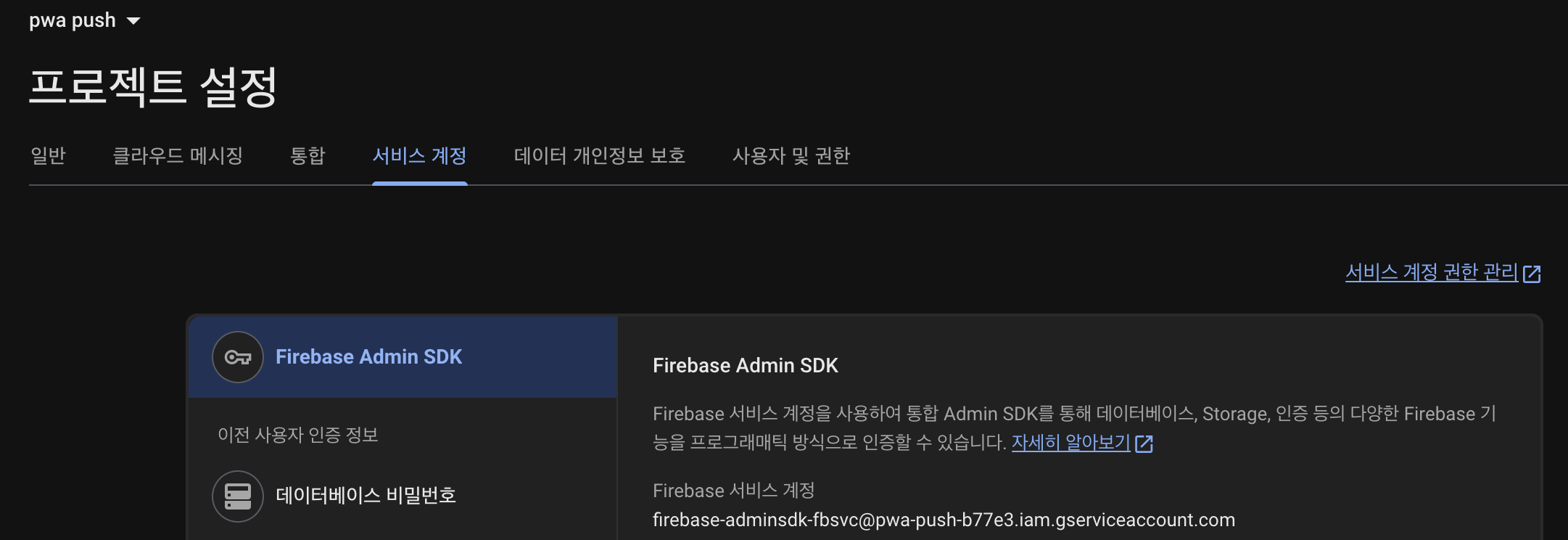

Firebase 콘솔 > 프로젝트 설정 > 서비스 계정에서 새 비공개키 생성

json 파일을 service-account-file.json 으로 저장하여 사용





$ export GOOGLE_APPLICATION_CREDENTIALS="/home/user/Downloads/service-account-file.json"



4-2) python 으로 push 테스트

샘플예제 참고: https://github.com/firebase/quickstart-python

GitHub - firebase/quickstart-python

PROJECT_ID = 'pwa-push-b77e3'
BASE_URL = 'https://fcm.googleapis.com'
FCM_ENDPOINT = 'v1/projects/' + PROJECT_ID + '/messages:send'
FCM_URL = BASE_URL + '/' + FCM_ENDPOINT
SCOPES = ['https://www.googleapis.com/auth/firebase.messaging']


if __name__ == '__main__':
    # [Generate push message]
    common_message = {
        'message': {
            # flutter app token
            "token": "--------------",
            "notification": {
                "body": "This is an FCM notification message!",
                "title": "FCM Message"
            }
        }
    }
    # [Get access_token]
    credentials = service_account.Credentials.from_service_account_file(os.environ.get("GOOGLE_APPLICATION_CREDENTIALS"), scopes=SCOPES)
    request = google.auth.transport.requests.Request()
    credentials.refresh(request)

    headers = {
        'Authorization': 'Bearer ' + credentials.token,
        'Content-Type': 'application/json; UTF-8',
    }
    # [Send push message]
    resp = requests.post(FCM_URL, data=json.dumps(common_message), headers=headers)

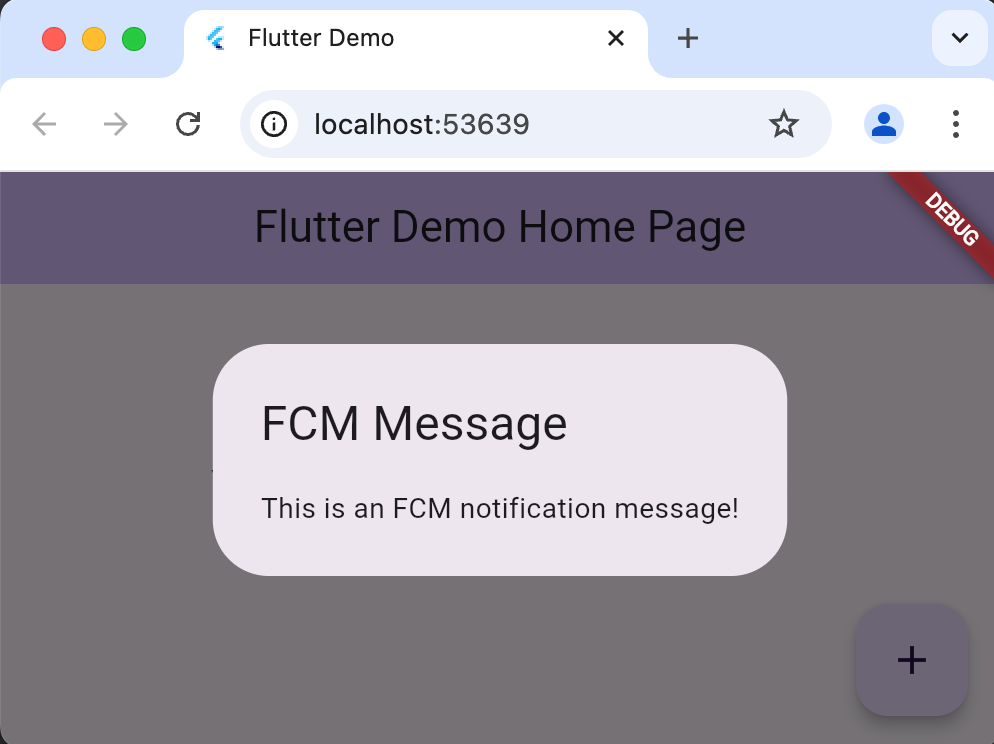

✅ flutter web app 으로 push 메세지 전송
